SYNOPSYS™15.59 版本发布

The update to version 15.59 incorporates the following changes:

Features:

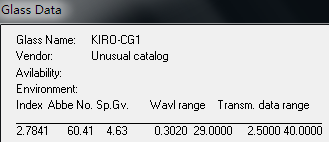

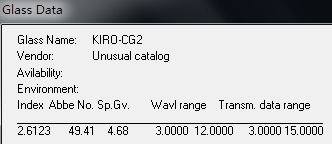

1.Two new materials are added to the U glass table: KIRO types CG1 and CG2.At the moment,those materials have no transmission data.When the vendor supplies them, we will add them.

2.ARGLASS has been enhanced.Now it will vary the glass models to duplicate a potential real glass, even if that glass is outside of the current boundaries.Before,it honored those boundaries and sometimes could not match a glass that was outside. When it adjusts the model now, the real glass should work better when reoptimized.

3.If you assign a CORE number, the program now shows the result in the tray.That way you always know how many cores are authorized.

4.The logic of the PAD scan has been changed.For some reason, if a process sleeps for more than an instant, the Windows OS decides not to show the changing display until it is finished.We believe this behavior has been evaded.

5.The PAD drawings will now show the path of vignetted rays up to the point of failure, if you select the custom rayset for that display.

Bugs Fixed:

1.MTF calculations did not always work on a system that contained a real DOE surface. (The USS types of simple DOE were not affected.)

2.The Image Tools MIT did not display the correct image structure in COHERENT mode if the exit pupil was not circular.

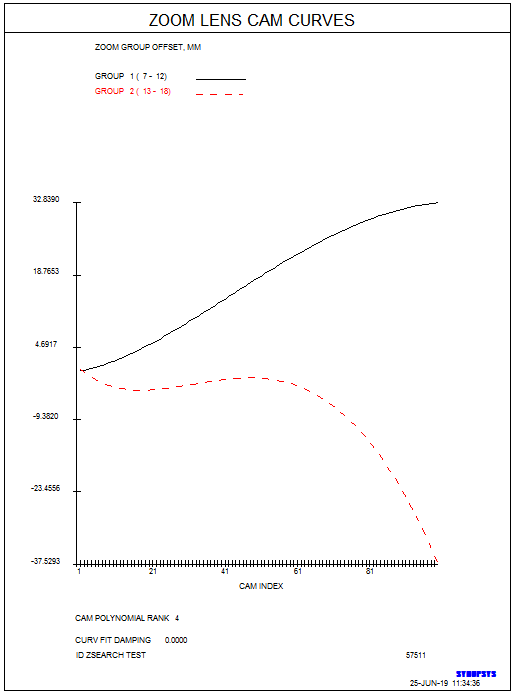

3.The abscissa of CAM plots did not show the axis or tic marks.
