SYNOPSYS™15.62 版本发布

The update to version 15.62incorporates the following changes:

Features:

1.ZFILE zooms lenses with object type OBD are now supported by CAM ZMAG.

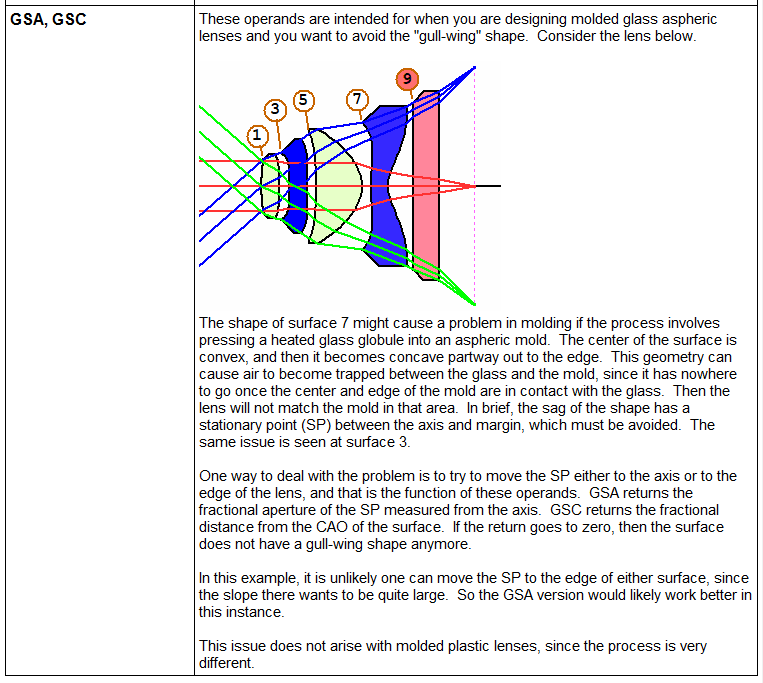

2.Two new construction-parameter operands are now available. GSA and GSC will control surfaces with a "gull-wing" shape, which can be difficult to mold in glass.

3.Automatic DOE assignment ADA now supports multicore operation.

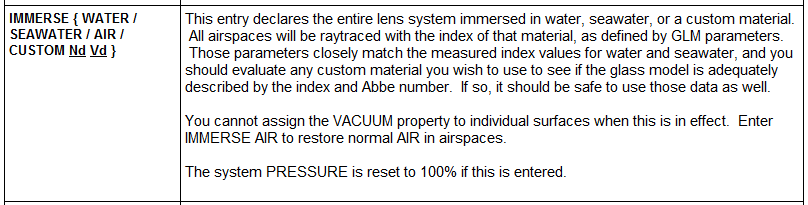

4.It is now possible to declare a lens system IMMERSE, which makes all air spaces take the index of the immersion medium. That can be WATER, SEAWATER, or a custom material modeled by GLM coefficients.

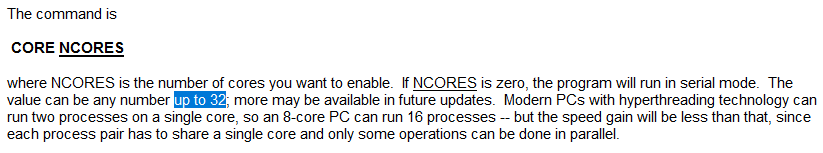

5.The program will now support up to 32 cores.

Bugs Fixed:

1.Multithread raytracing of toric surfaces was incorrect.

2.The CAP listing for systems with object OBD that were assigned VFIELD data was not correct.

3.The Air Force target type in the Image Tools dialog (MIT) displayed incorrect frequency numbers if the reference dimension was specified in lp/mm. The displayed values were divided by 25.4.

4.If you ran ZDWG and then made a FRINGES / PUPIL plot, the plot was not centered correctly on the page.
