SYNOPSYS™15.77 版本发布

The update to version 15.77 incorporates the following changes:

Features:

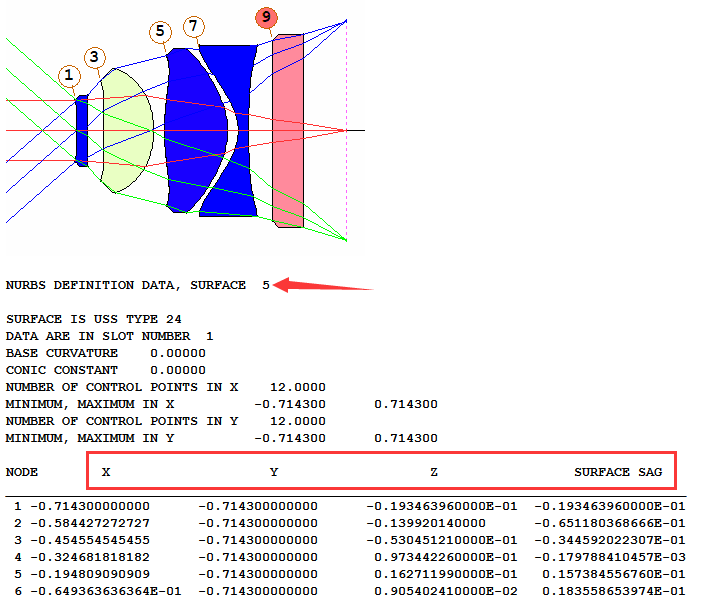

1.LNC will now list both the NURBS control points and the surface sag at each point, for reference.

2.AAA (Automatic Asphere Assignment) now has an optional EXCEPT... entry. This will exclude surfaces that you don't want to become aspheric. ADA (Automatic DOE assignment) is similarly enhanced.

3.If you ask for the monitor AGE or AAE after you have already declared AEC, instead of dropping the latter, the program now converts it to the other unused type. So you won't wonder why your lenses are feathered anymore.

4.Several new glass types have been added to the Schott, Ohara, Hoya, and LZOS catalogs.

Bugs修复：

1.The ZMC (Zemax conversion) rendered YFLN data as OBA, It should have been OBC.

2.ADA in multicore mode would crash if switch 99 was turned on. Since ADA already runs multiple processes, it was not able to run each one in another set of multiple processes. Now it will turn off switch 99 first. The same was true for the Monte-Carlo program MC.

3.The REVERSE command did not reverse the aspheric coefficients on a USS 16 DOE.

4.The lens layout tool LLT, when run on a lens with object type OBD, did not work correctly unless the system was in GLOBAL mode. Now object OBD turns on that mode automatically.
