SYNOPSYS™15.83 版本发布

The update to version 15.83 incorporates the following changes:

Features:

1.The default weight on a TOTAL request remains at 0.1 if no value is entered. Before, the weight became zero.

2.A new option is turned on for multicore optimization via switch 99. Now the higher cores will not be terminated when the optimization finishes. This is so you can run the annealing program, reusing those cores, without the overhead of starting and stopping each one at each temperature.The process therefore runs much faster.This option is now the default, and can be turned on and off with the third argument on the C99 command.

Bugs Fixed:

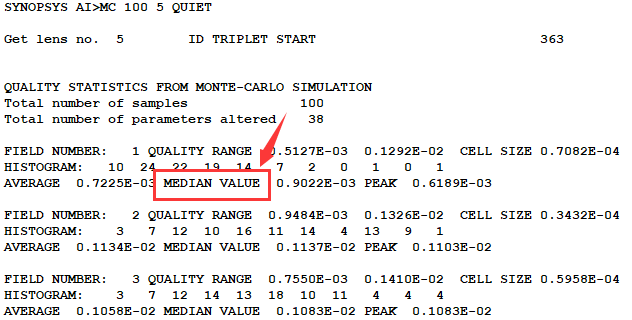

1.The "mean" value printed by MC is now labeled the "median", which is more appropriate.

2.The search option on the MWL dialog did not always work properly.

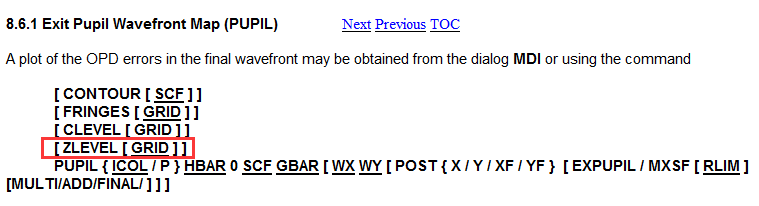

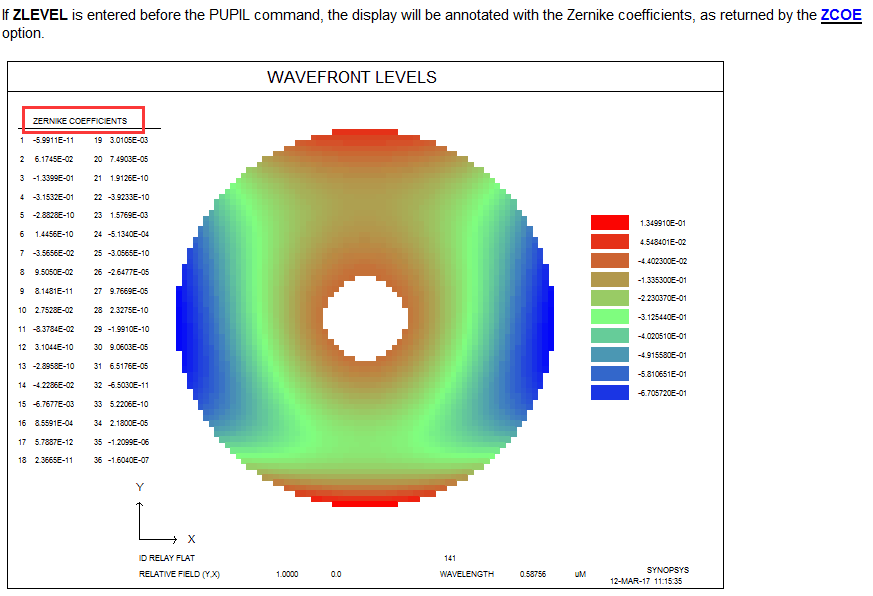

3.The ZLEVEL version of the PUPIL command did not work properly.

4.The ZSEARCH ... SINGLE option did not display the zoombar.
