SYNOPSYS™15.84 版本发布

The update to version 15.84 incorporates the following changes:

Features:

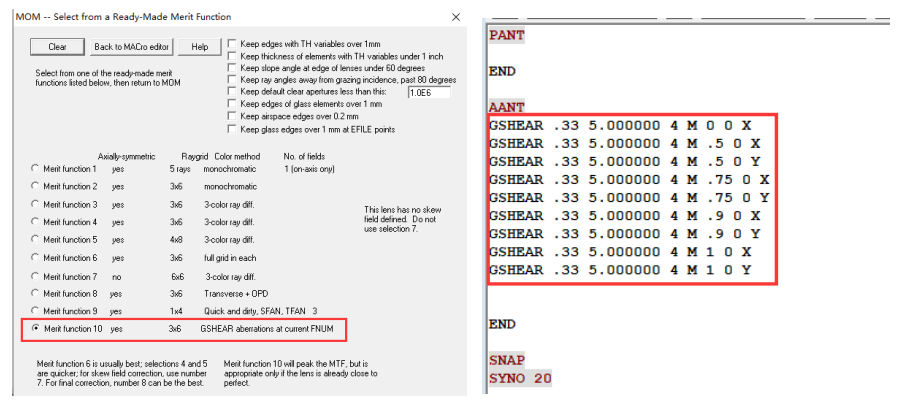

1. The GSHEAR option has been added to the MOM dialog, so you can easily add those operands to your AANT file.

2. New operands IHH and IZZ will target the tangent of the incident angle of the requested ray. This is for when you want the object rays telecentric.

Bugs Fixed:

1. SPB crashed if you entered the SPECIAL input. Also, the stopsign button did not work.

2. The ZSEARCH program left out one "END" line in the optimization MACro if you requested AGROUP. Also, if less than 10 solutions were found, there were duplicates shown on the plot.

3. The ATC monitor did not work on cemented elements.

4. AEI did not work correctly if switch 99 was on.

5. GSEARCH did not work correctly in multicore mode.

Issues:

1. We have observed that if you turn on switch 99 (enabling multicore optimization, which is recommend for slow jobs but not for fast ones), and if the number of cores authorized (via C99) exceeds 16, the Windows operating system can become unstable. We are investigating the cause of this behavior, and until it is resolved, you are advised to stay within the 16-core limit for that feature.
