The update to version 15.86 incorporates the following changes:

Features:

1.The RAS command (to recast an aspheric into a power-series) now accepts a fourth argument nterms, which limits the number of terms to be used.

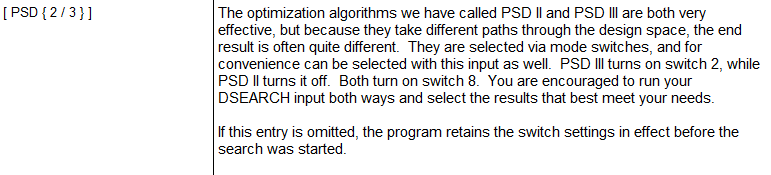

2.The DSEARCH command now accepts the input PSD { 2 / 3 }, which can help find different solutions.

3.BTOL is not intended for systems with USS surfaces, and now prints a message saying you should recast those to Zernike surfaces first.

Bugs Fixed:

1.PCAT did not work properly.

2.BTOL did not work properly for BICONIC surfaces.

3.A PYA target in ZSEARCH ignored the weight assigned in word four.

4.Editing annotation in the graphics editor could crash if no size was selected.

5.If you ran DSEARCH while thermal shadowing was in effect, the program would hang.

6.Specifying the stop on the last surface in DSEARCH with AFOCAL turned on did not work.

7.Varying a glass model with GLM on a surface that has a glass-table glass can fail.

8.GSEARCH can hang if rays fail.
