SYNOPSYS™15.95 版本发布

The update to version 15.95 incorporates the following changes:

Features:

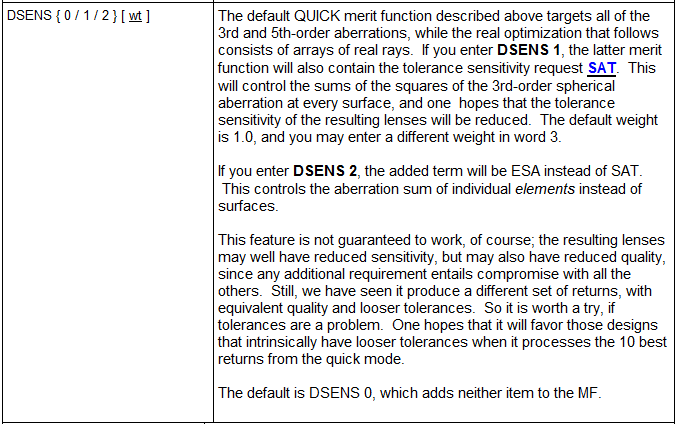

1. DSEARCH can now add an operand for the tolerance desensitization parameters SAT and ESA, which can in some cases return designs with looser tolerances. The new option DSENS controls this feature.

2.Five new plastic types have been added to the U catalog: EP4500, EP6000, EP6500, EP7000, and EP8000.

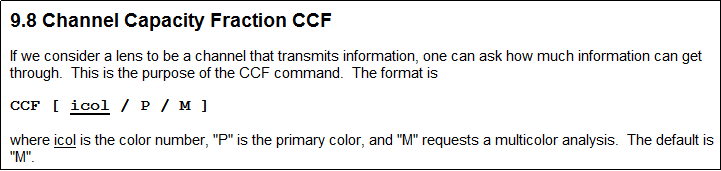

3. A new lens evaluation feature has been added. CCF will analyze the channel capacity fraction, which is a measure of the total amount of information a lens can transmit, relative to a perfect lens.

Bugs Fixed:

1. The pupil selection WAP 0, when applied to a lens with the wide-angle object OBD would behave as though it were WAP 1.

2. The PAD scan feature would sometimes fail if the object was type OBD.

3. The drawing programs rendered systems with hyperhemispherical surfaces on both sides incorrectly.
