SYNOPSYS™ 15.100版本更新

The update to version 15.100 incorporates the following changes:

Features:

1. The new command MASK... will create an array of tiles containing areas to be masked. This can evaluate the effect on the image when looking through a screen as is sometimes done with cell phone camera lenses.

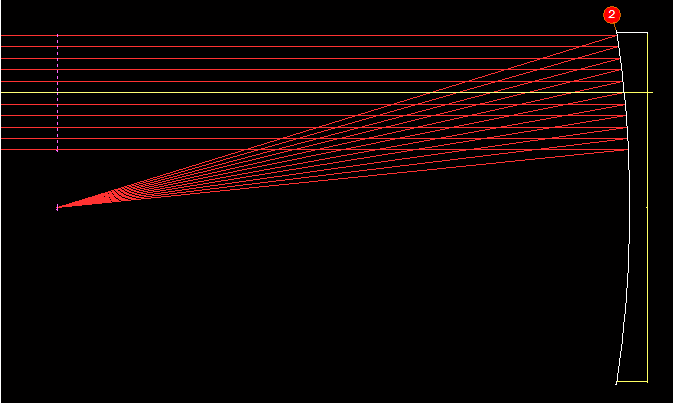

2.The free-form analysis tool FFA has been enhanced. Now it not only calculates the Zernike shape that applies to a reduced area of a parent asphere. but it will actually recast that area into the new shape at the new location at the center of the decentered CAO. This feature then shows the mirror as you would actually manufacture it, with a centered clear aperture.

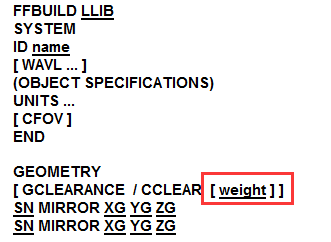

3. FFBUILD now lets you specify a weighting for the clearance aberrations, which can affect the search direction.

Bugs Fixed:

1. The search button on the graphics toolbar did not work.

2. The drawing programs could fail when the object space was not in AIR.

15.99、15.100 版本更新内容，请查看武汉墨光官网：http://www.asdoptics.com/news.php
