SYNOPSYS™ V16.008 版本更新

The update to version 16.008 incorporates the following changes:

Features:

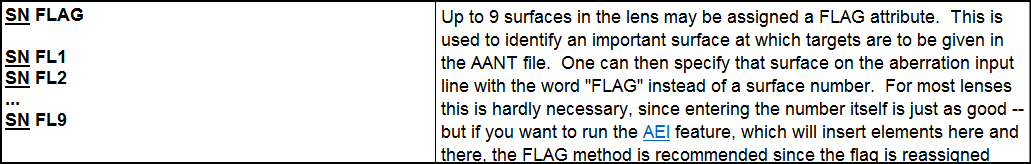

1. Nine flags can now be assigned to a surface, designated FL1, FL2, …FL9. These can be referred to elsewhere, as in the AANT file..

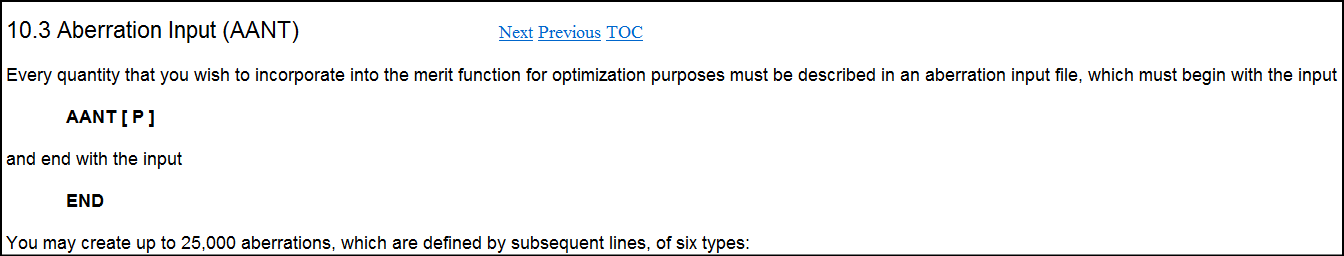

2. The AANT file can now contain up to 25,000 aberrations, up from the previous 15,000.

3. ZMTF now always uses a piecewise-linear interpolation over the pupil. Previously, there was a choice between that or a Zernike fit. But the latter proved inadequate and has been deactivated.

Bugs Fixed:

1. 1.The lens ID was not displayed on some FFA plots.

2. The link to chapter 2.11 in the manual was incorrect.

3. The GCLEAR operand often did not work correctly.
